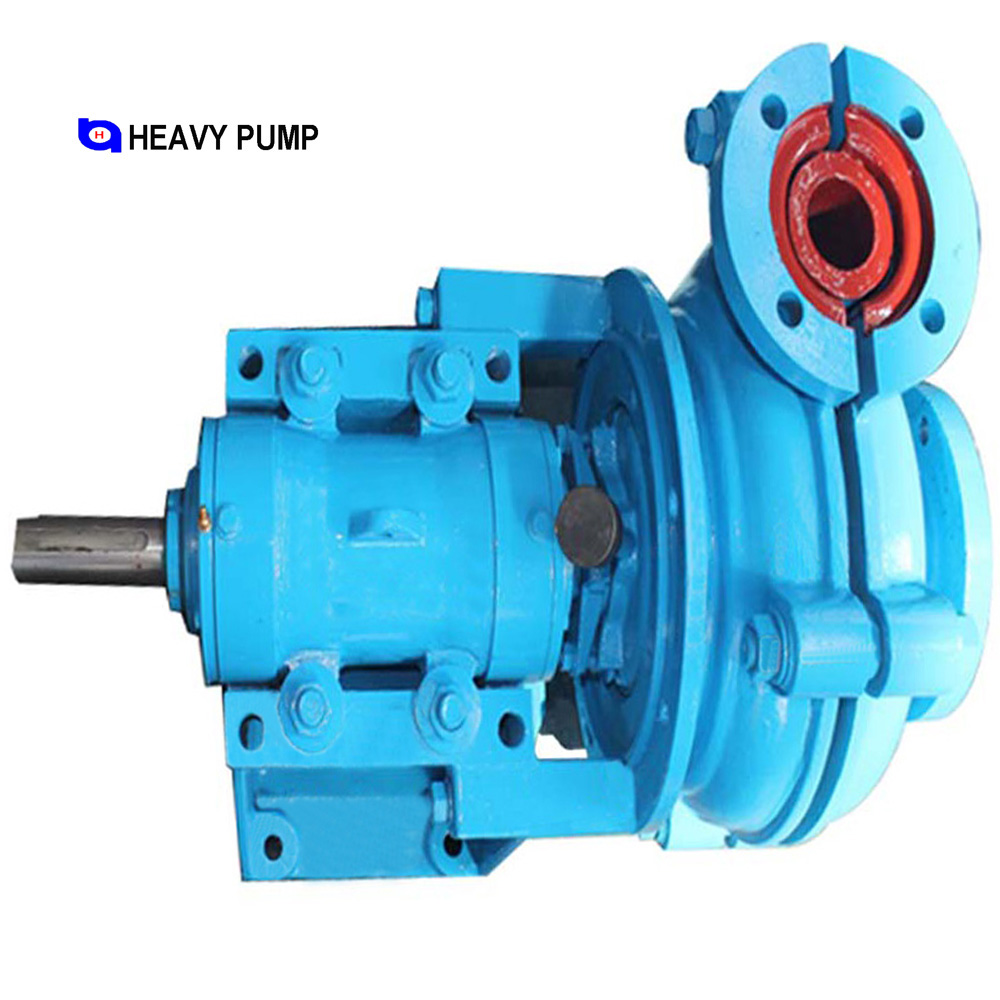

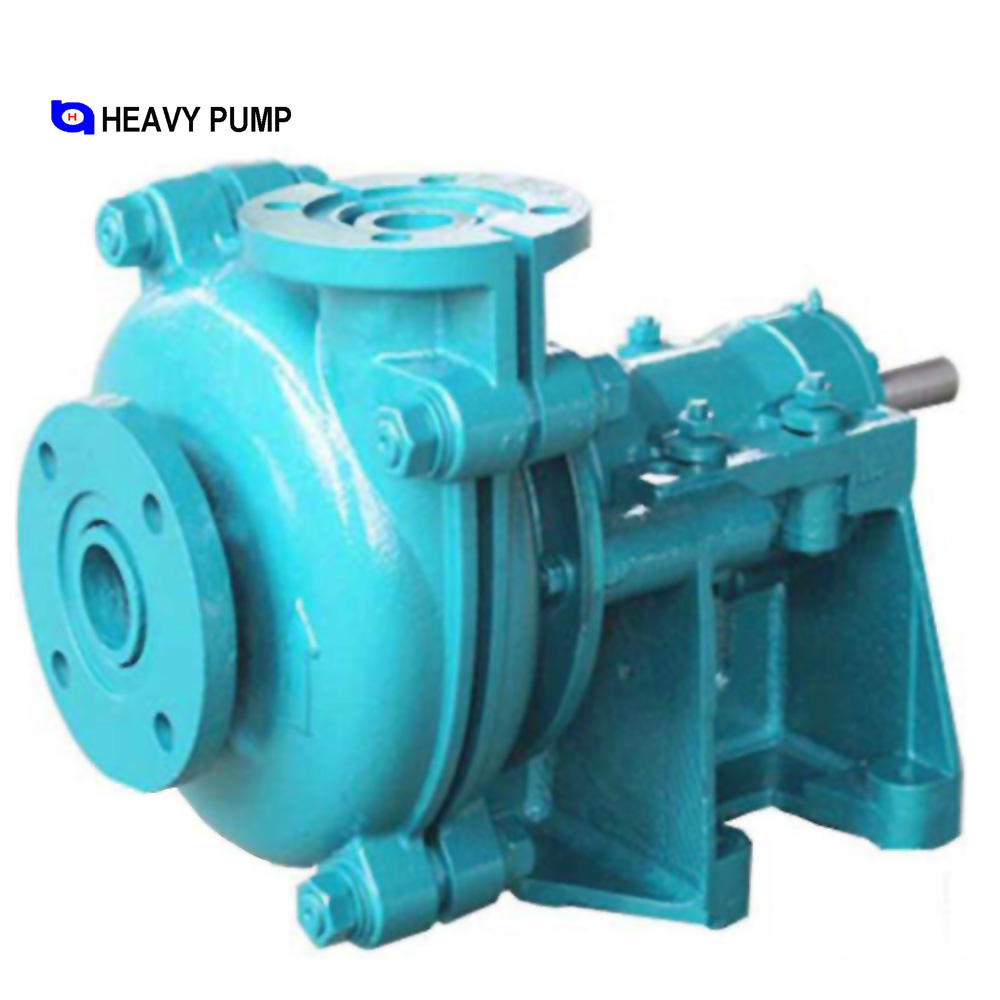

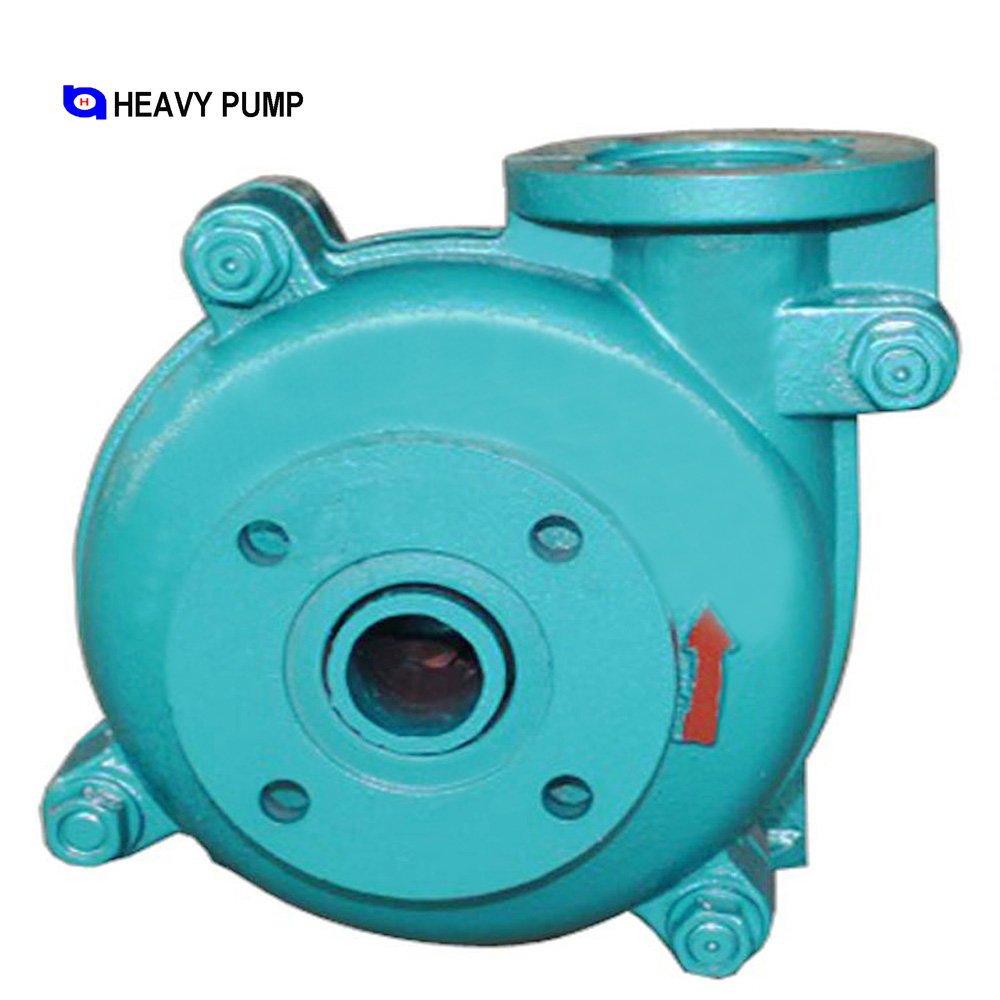

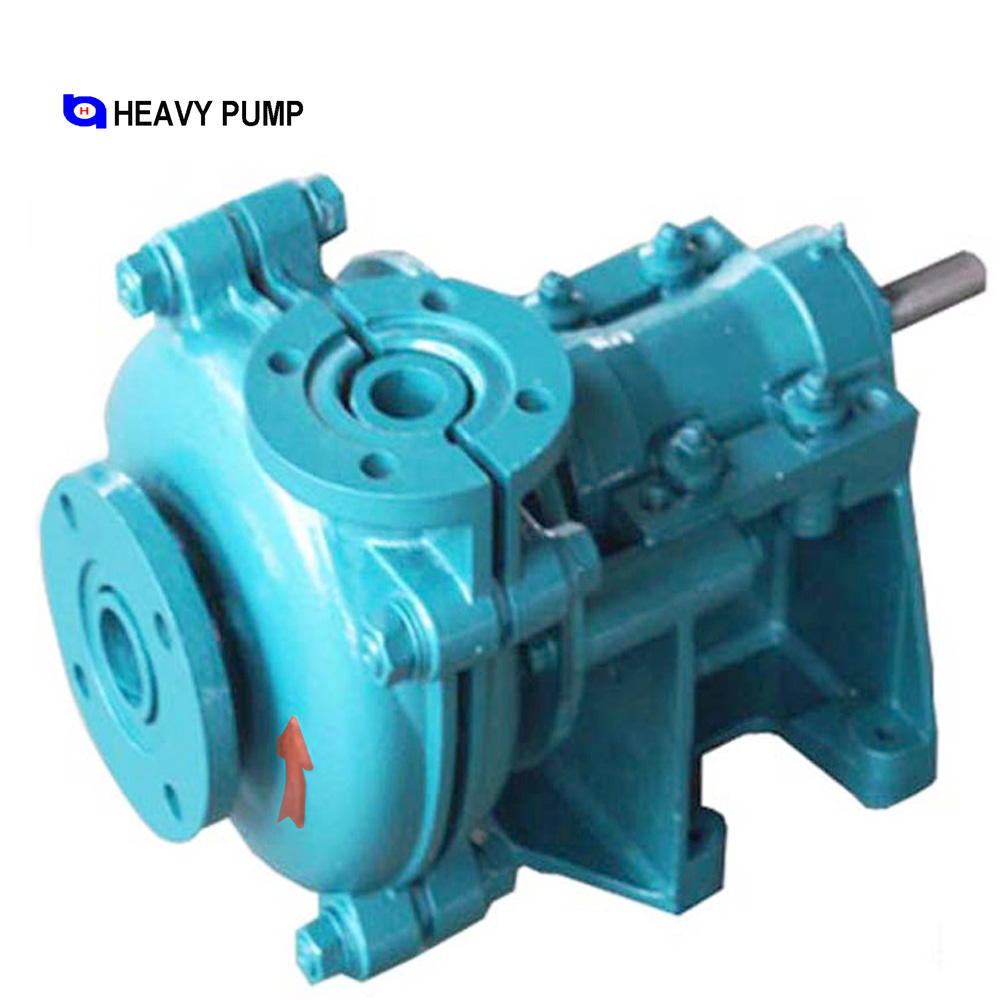

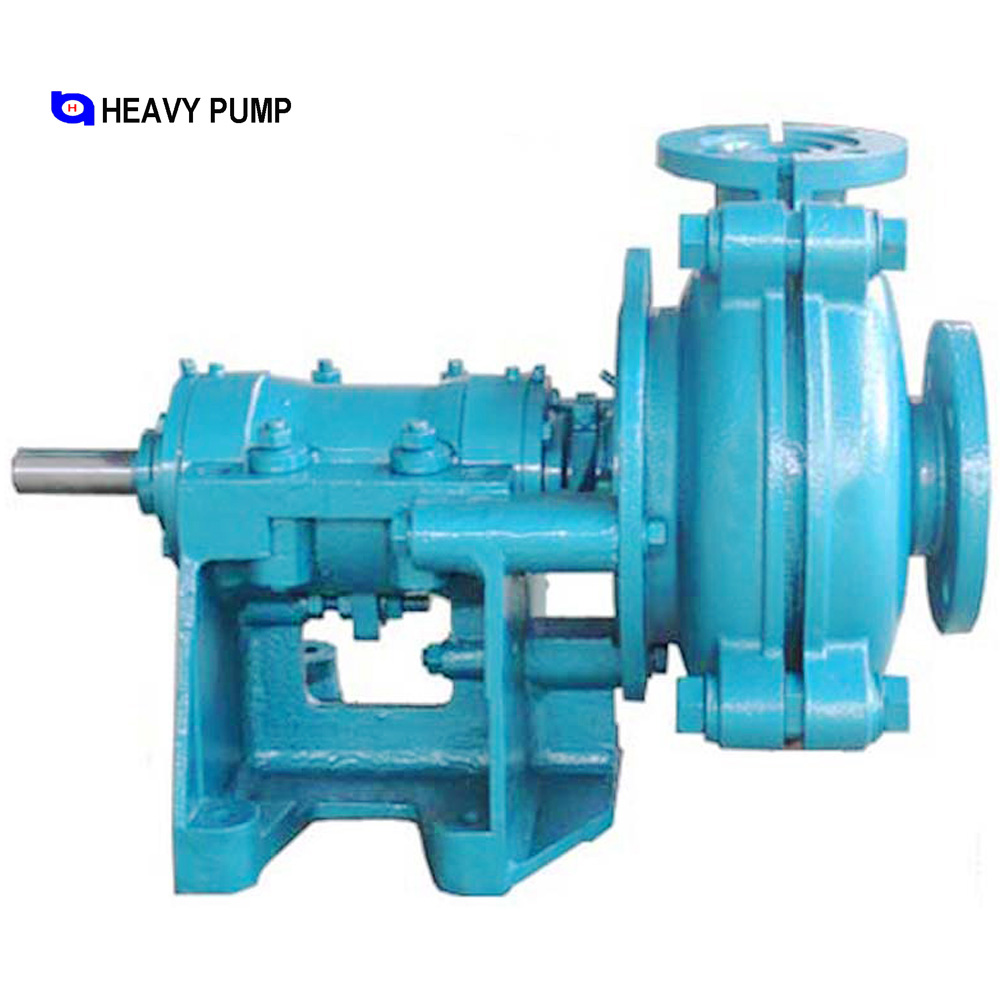

25HS-B Slurry Pump
Shijiazhuang Heavy Pump Company Limited 1
Summary Description
1)Capacity: 12.6—28.8 m3/h
2)Head: 6—68 m
3)Flow parts materials: Cr26 alloy
4)Allowable mating Mac power: 15 kw
$481.00
PRODUCT DETAILS
|
Product description |
Type MS, HS, and HHS pumps are cantilevered, horizontal, centrifugal slurry pumps. They are designed for handing abrasive, high slurries in the metallurgical, mining, coal, power, building material and other industrial departments etc. The pumps of this type also may be installed in multistage series.
The frame plates for type MS, HS pumps such as interchangeable, hard metal or pressure moulded elastomer liners. The impellers are made of hard metal or pressure moulded elastomer liners. The frame plate liner and impeller for HHS pump are adoptable of hard metal only.
The shaft seals for type MS, HS, and HHS pumps may be adoptable of gland seal or centrifugal shaft seal. The discharge branch can be positioned at intervals of 45 degrees by request and oriented to any eight positions to suit installations and applications.
USAGE AND FEATURES
Advanced hydraulic model, CAD three-dimensional design, high efficiency, significant energy saving, large deepening, high concentrations dredging, cavitation performance, super suction and over-flow capability, continuously pumping gravel and high mould clay block.
It can be equipped with diesel engines or be equipped with motor driven directly. It has the advantages of working stability, little vibration, low noise and low hydraulic loss, high efficiency, low fuel consumption and small size, light weight, simple structure, easy maintenance.

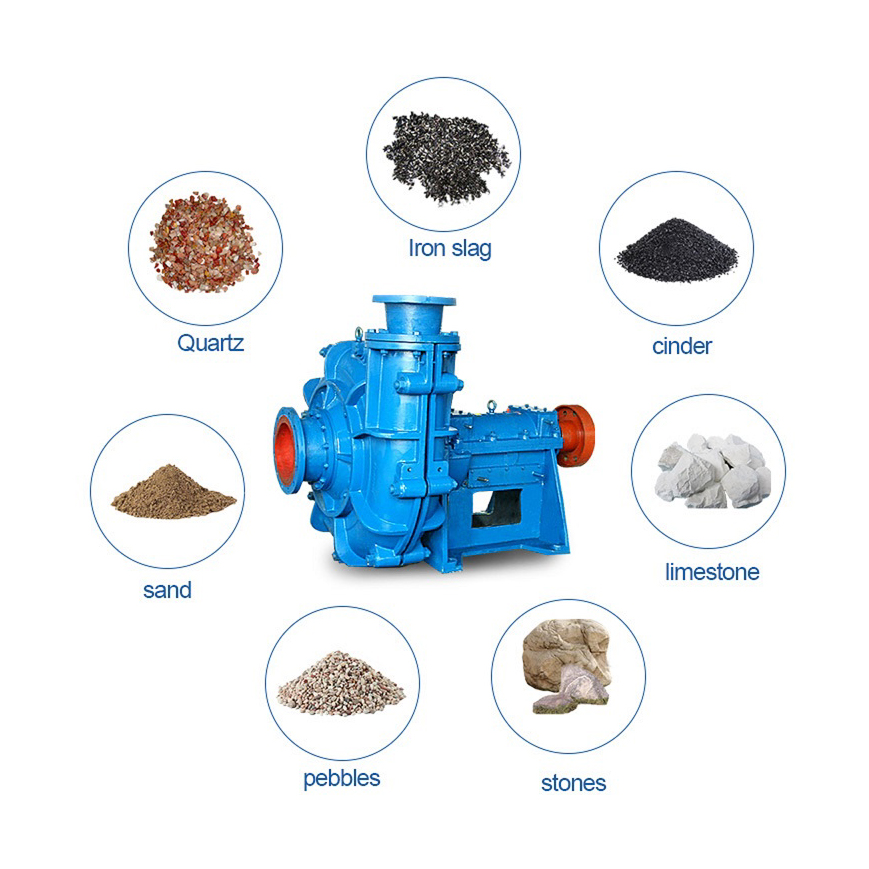

| Application area |
| Details Images |

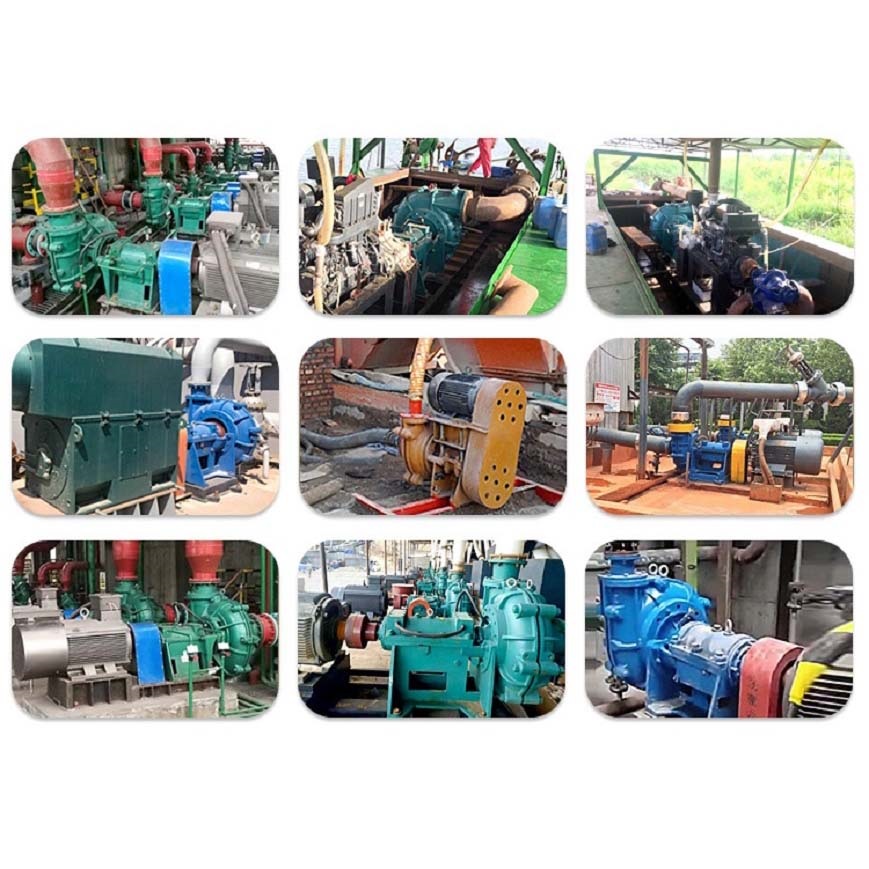

| Work environment |
| Product Paramenters |
| Pump Model | Material | Performance | Impel.Dia(mm) |
|||||
| Capacity(m³/h) | Head （m） | Speed(rpm) | Max.Eff(%) | Max Power(KW) | NPSH(m) | |||
| 25HS-B | M | 12.6～28.8 | 6～68 | 1200～3800 | 40 |
15 |
2～4 | 152 |
| R | 10.8～25.2 | 7～52 |
1400～3400 |
35 | ||||
| 25HHS-C | M | 16.2～34.2 | 25～92 | 1400～2200 | 20 | 30 | 2～5.5 |
330 |
| 40HS-B | M | 32.4～72 | 6～58 | 1200～3200 | 45 | 15 | 3.5～8 |
184 |
| R | 25.2～54 |
5.5～41 |
1000～2600 |
50 | 2.5～5 |
178 | ||
| 50HS-C | M | 39.6～86.4 | 12～64 | 1300～2700 | 55 | 30 | 4～6 |
214 |
| R | 36～75.6 |
13～46 |
1300～2300 |
60 | 2～4 |
213 | ||
| 50HHS-D | M | 68.4～136.8 | 25～87 | 850～1400 | 47 | 60 | 3～7.5 |
457 |
| 75HS-C | M | 86.4～198 | 9～52 | 1000～2200 | 71 | 30 | 4～6 |
245 |
| R | 79.2～180 |
5～34.5 |
800～1800 |
59 | 3～5 |
|||
| 75HHS-E | M | 126～252 | 12～97 | 600～1400 | 50 | 120 | 2～5 |
508 |
| 100HS-D | M | 162～360 | 12～56 | 800～1550 | 65 | 60 | 5～8 |
365 |
| R | 144～324 |
12～45 |
800～1350 |
65 | 3～5 |
|||
| 100HHS-S |
M | 324～720 | 30～118 | 600～1000 | 64 | 560 | 3～8 |
711 |
| 150HHS-S-A |
M | 468～1008 | 20～94 | 500～1000 | 65 | 560 | 4～12 |
711 |
| 150HS-R | M | 360～828 | 10～61 | 500～1140 | 72 | 300 | 2～9 |
510 |
| R | 324～720 |
7～49 |
400～1000 |
65 | 5～10 |
|||
| 200MS-E |
M | 666～1440 | 14～60 | 600～1100 | 73 | 120 | 4～10 |
549 |
| 200HS-ST | M | 612～1368 | 11～61 | 400～850 | 71 | 560 | 4～10 |
686 |
| R | 540～1188 |
12～50 |
400～750 |
75 | 4～12 |
|||
| 250HS-ST | M | 936～1980 | 7～68 | 300～800 | 82 | 560 | 2～8 |
762 |
| R | 720～1620 |
7～45 |
300～650 |
80 | 2.5～7.5 |
|||
| 300HS-TU | M | 1260～2772 | 13～63 | 300～600 | 77 | 560 | 3～10 |
965 |
| R | 1152～2520 |
13～44 |
300～500 |
79 | 3～8 |
|||
| 350HS-TU |
M | 1368～3060 | 11～63 | 250～550 | 79 | 1200 | 4～10 |
1067 |
| 450HS-TU |
M | 2520～5400 | 13～57 | 200～400 | 85 | 1200 | 5～10 |
1370 |

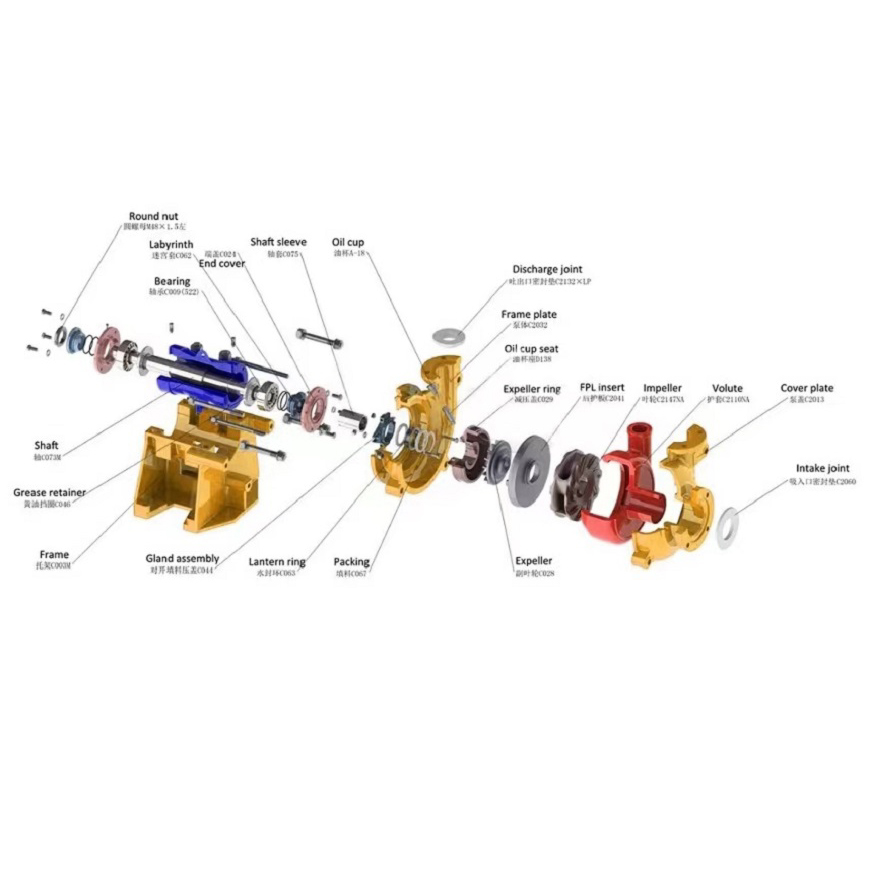

| Working principle |
 |

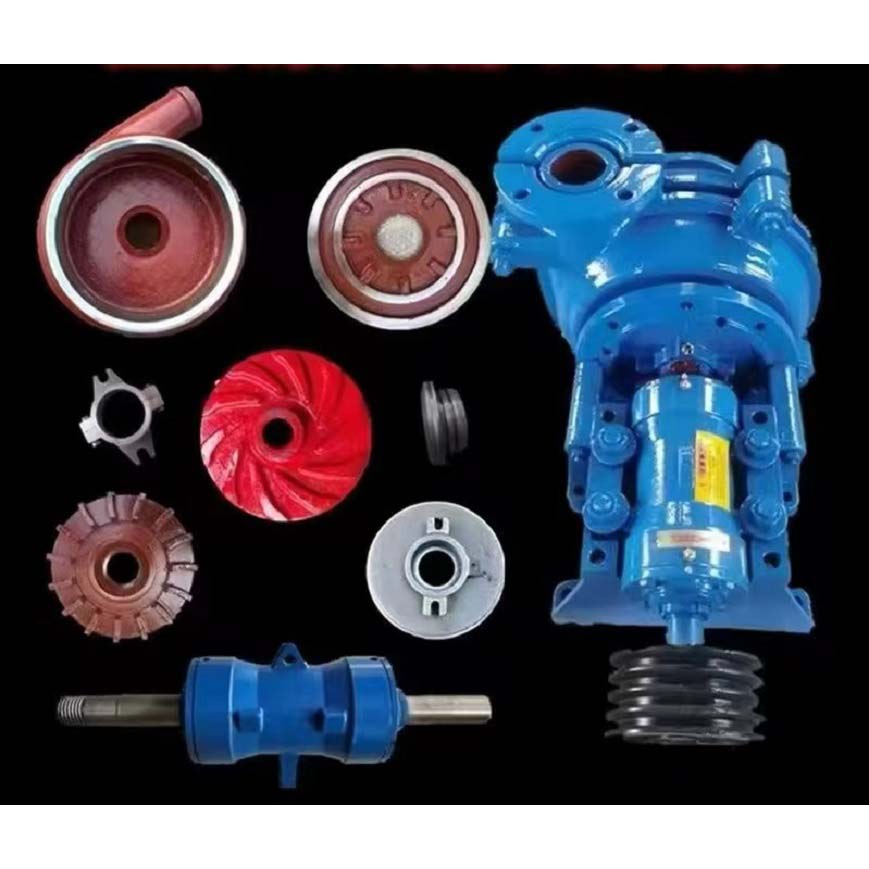

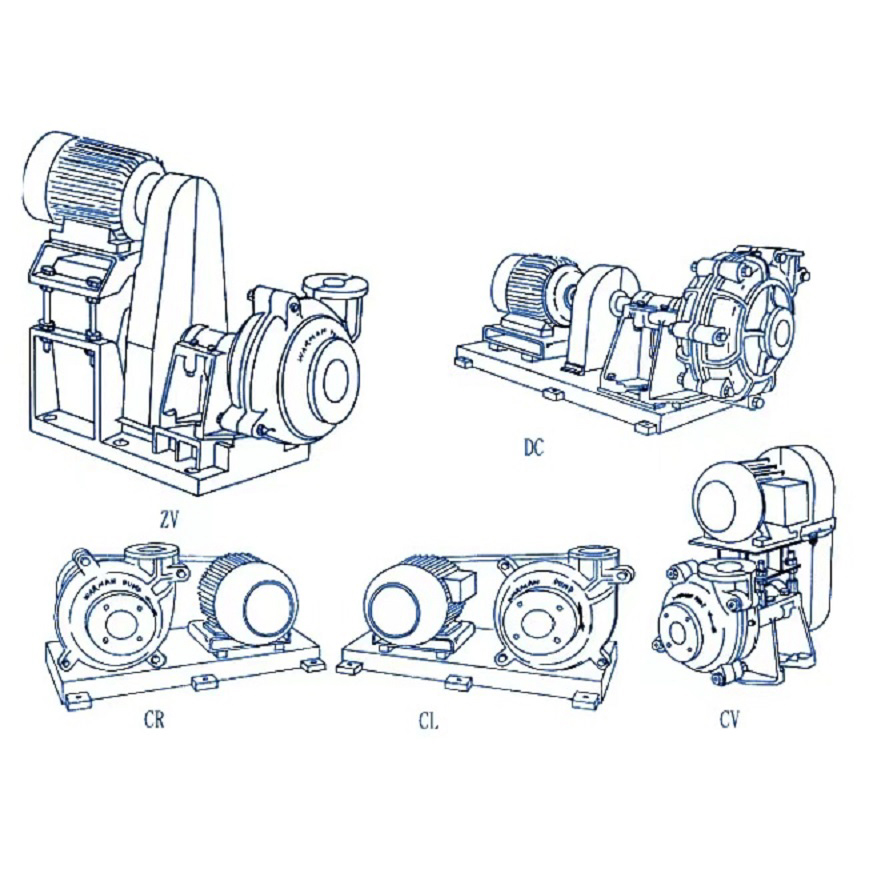

| Types of accessories |
| Company Profile |
Shijiazhuang Heavy Pump Company Limited is changed by Hebei Xinda Slurry Company. We continue the fine tradition of producing slurry pumps-be famouse for its quality and service.
All products are mainly supplied to mining, metallurgy, public works, coal, petroleum, chemical, building material and other national economic deparments. The products are sold well all China and far to more than 40 countries in the world.

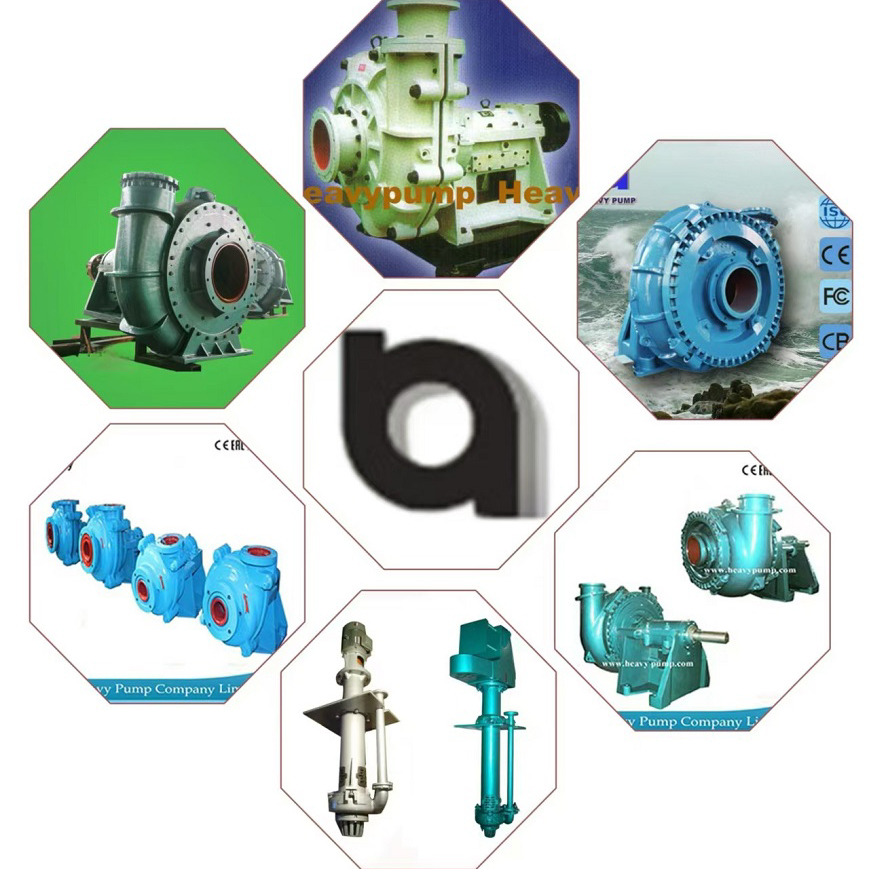

| Heavy pump products in five series: | f)Packing seal: Mechanical seal or Gland seal. |
| 1)Heavy horizontal slurry pump H series. | We can choose the pump material according to pump working condition. |
| 2)Heavy vertical slurry pump SP ( semi-submersible pump) | Heavy pump products advantage: |
| 3)Heavy dredge pump G series | 1)Anti-abraisive metal. |
| 4)Heavy gravel pump T series | 2)Module design which makes the spareparts can be changed freely. |
| 5)Heavy submersible pump | 3)Designed and built for long time with low maintenance. |
| Heavy Slurry Pump Material: | Heavy Pump Company to the Customers: |
| a)Impeller: high-chromium alloy or rubber. | 1)Quality first. We guranteed every spareparts of the pump must be inspected closedly and will have our inspectors names on it. |
| b)Volute liner: high-chromium alloy. | 2)Fast delivery at your requirement. |
| c)Shaft: 45# steel. | |
| d)Shaft sleeve: ductile casting. | |
| e)Frame plate: casting. |

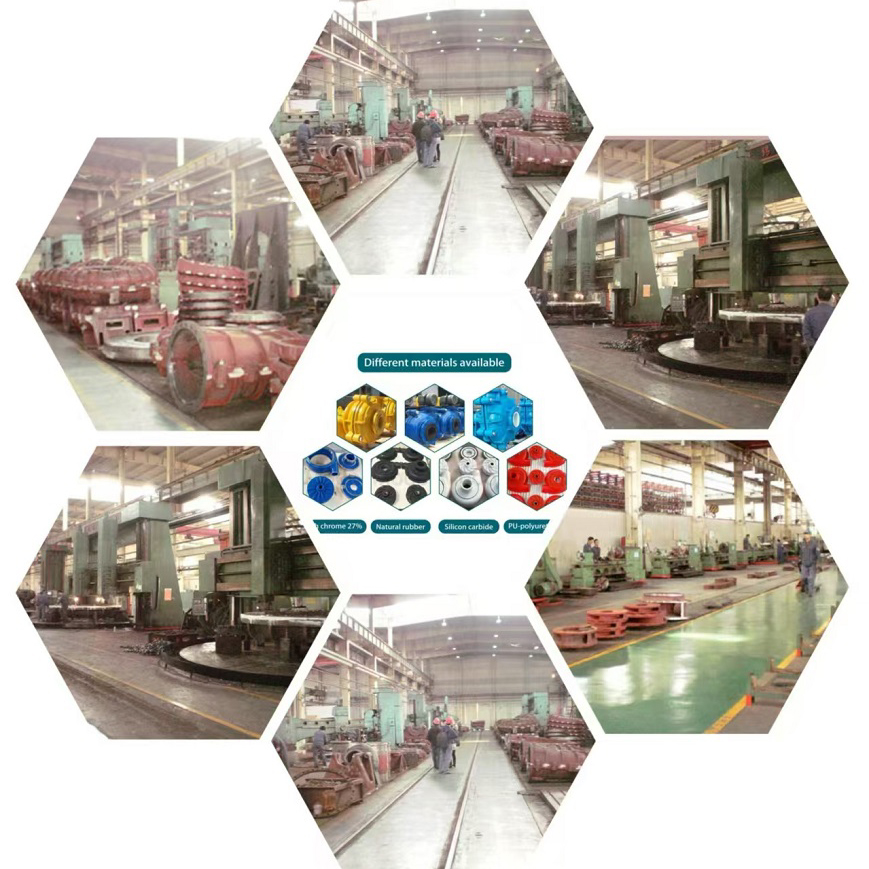

| Production workshop corner |
| Use of Site |
| Enterprise production certificate |
Business license
Customs Union EAC
Certification CE certification
ISO 9001 certificate
| Customer Visit Photos |
Visit and purchase products from South African customers
Visit and purchase products from Korean customers
From Russian customers for inspection and procurement of products
Visit and purchase products from Malaysia customers

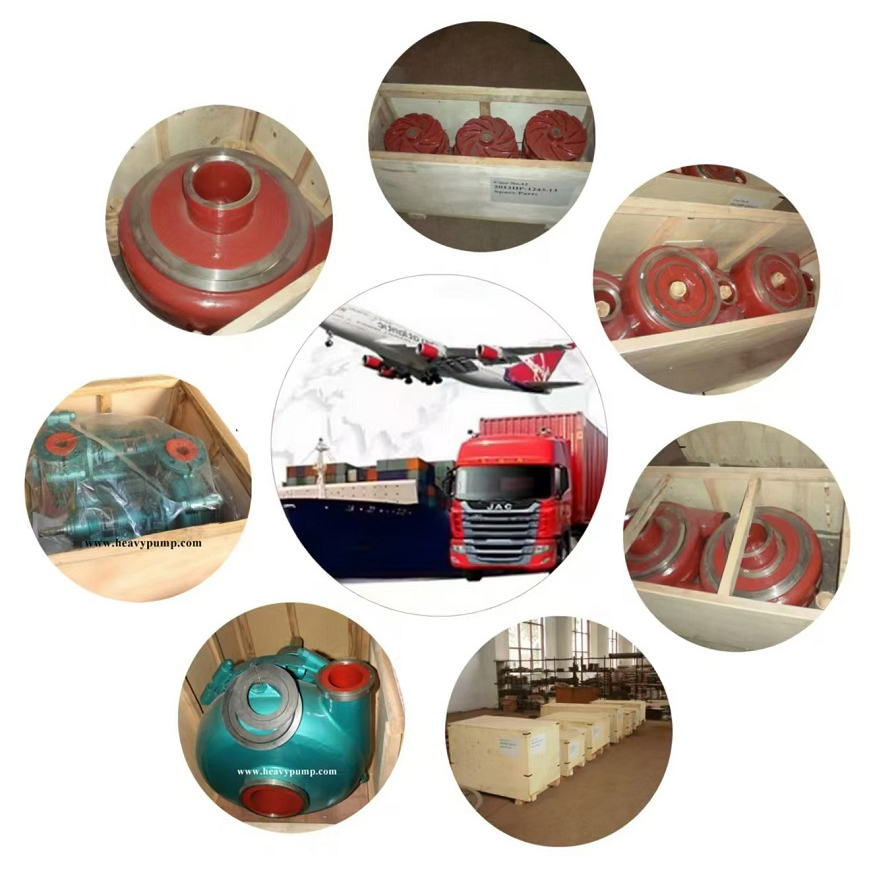

| Packaging Transport Photos |
Heavy pump with the unremitting pursuit of high quality and high performance and unlimited enthusiasm to innovate new products, with superb technology, strict quality control and excellent service, have won the favor of customers all over the world.
Heavy pump have been successfully exported to more than 100 countries around the world, so that the world has witnessed the charm of Made in China.
| FAQ |
Q: How can I make order online?
A: Send email or message(whatsApp/ wechat) us.you can ask any question ,after we confirm the detail, we can make order.
Q: Do you have MOQ limit?
A: The MOQ is 1 set.
Q: Which payments are acceptable?
A: T/T, L/C, Western Union, Paypal.
Q: Which shipping terms are available?
A: By sea, air, Express.
Q: How about the delivery time?
A: Delivery time is normally 3-7 working days after confirm the money. Depends on your quantity.
Q: What's your warranties?
A: 1 year after delivery.
Q: Can I buy parts separately?
A: Yes, all of the pump spare parts can buy separately.
